The
Handheld Pendant Controller is a revolutionary idea. This pendant can be part of a complete machine tool
controller for any type of machine control application. The concept is to provide a system
with the Handheld Pendant as the main control. The package will come complete with the
Pendant, CamSoft operator screens and CAD/CAM software preinstalled into a Pentium
computer. Also included, installed and tested are a 3-axis motion card, auxiliary digital
I/O card, interconnect module, relay rack and cables. Built upon CamSoft's
CNC Professional CNC
Machine Tool Controller Software means this is still open and flexible to change and adapt
to your application. The biggest difference is there is no need for an enclosure. This
controller is ready to get going right away. You can choose to install the system into
your existing controller, build your own box or set up the complete system on a bench next
to the machine and you are ready to start cutting.

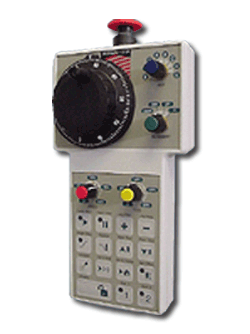

HandHeld Pendant
- Dimensions Height 9 ¼" Width 5" Depth 1 ½"
- Cycle Start
- Single step mode
- FeedHold
- Emergency Stop
- Axes jogging with incremental control
- A handwheel for manual tool setting and jogging
- Feed and Speed override pots, from 0 to 200%
- Digitize/Teaching button
- Toggling the coolant on and off
- Send the tool to 0,0
- Send the tool home
- Setting tool offsets
- 2 extra I/O buttons for integrator definition
- 10 foot cable
|
